Name: Bosch 800 Series 30" SS FlameSelect Low Profile 5-Burner Gas Cooktop NGM8057UC
SKU: 577238

Bosch 800 Series NGM8057UC

30 Inch 5-Burner Stainless Steel Gas Cooktop

FlameSelect
Dual Flame Power Burner
Heavy-Duty Grates
OptiSim® Burner
Low Profile Cooking Surface
LP Conversion Kit
Push-to-Turn Knobs
Up-Front Centralized Controls
Flame Failure Safety

Number of Burners: 5

Style: Sealed Burner

Type: Drop-In

Control Type: Knobs

Downdraft Venting: No

Actual Width: 30 Inch

WiFi: No

Simmer Burner: Yes

Power Burner: Yes

Continuous Grates: Yes

Grill: No

Griddle: No

Hot Surface Indicator Light: No

Induction: No

Sabbath Mode: No

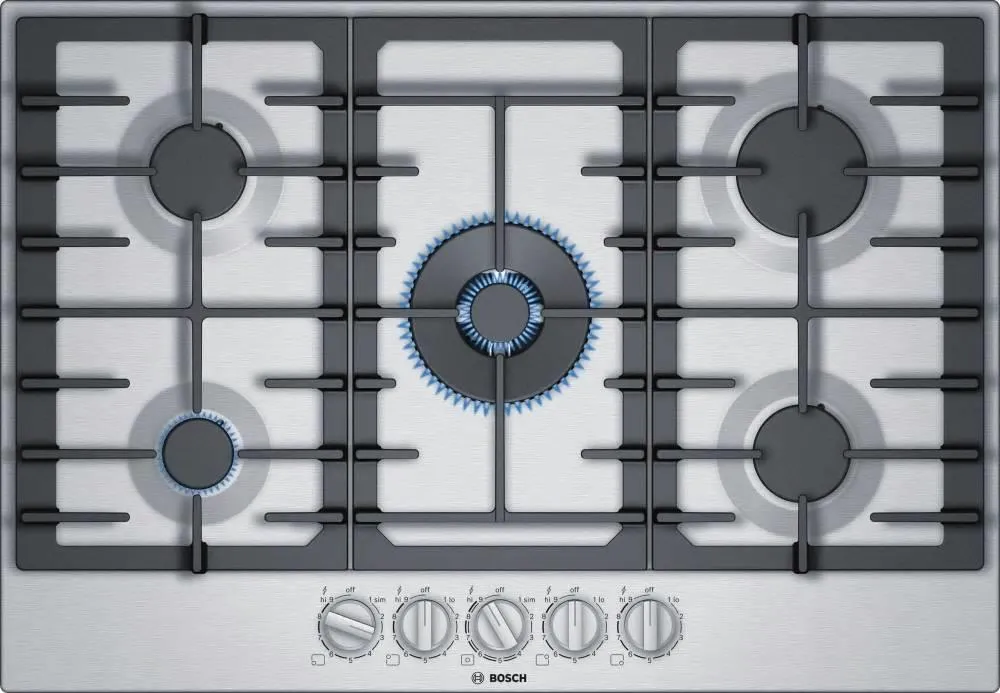

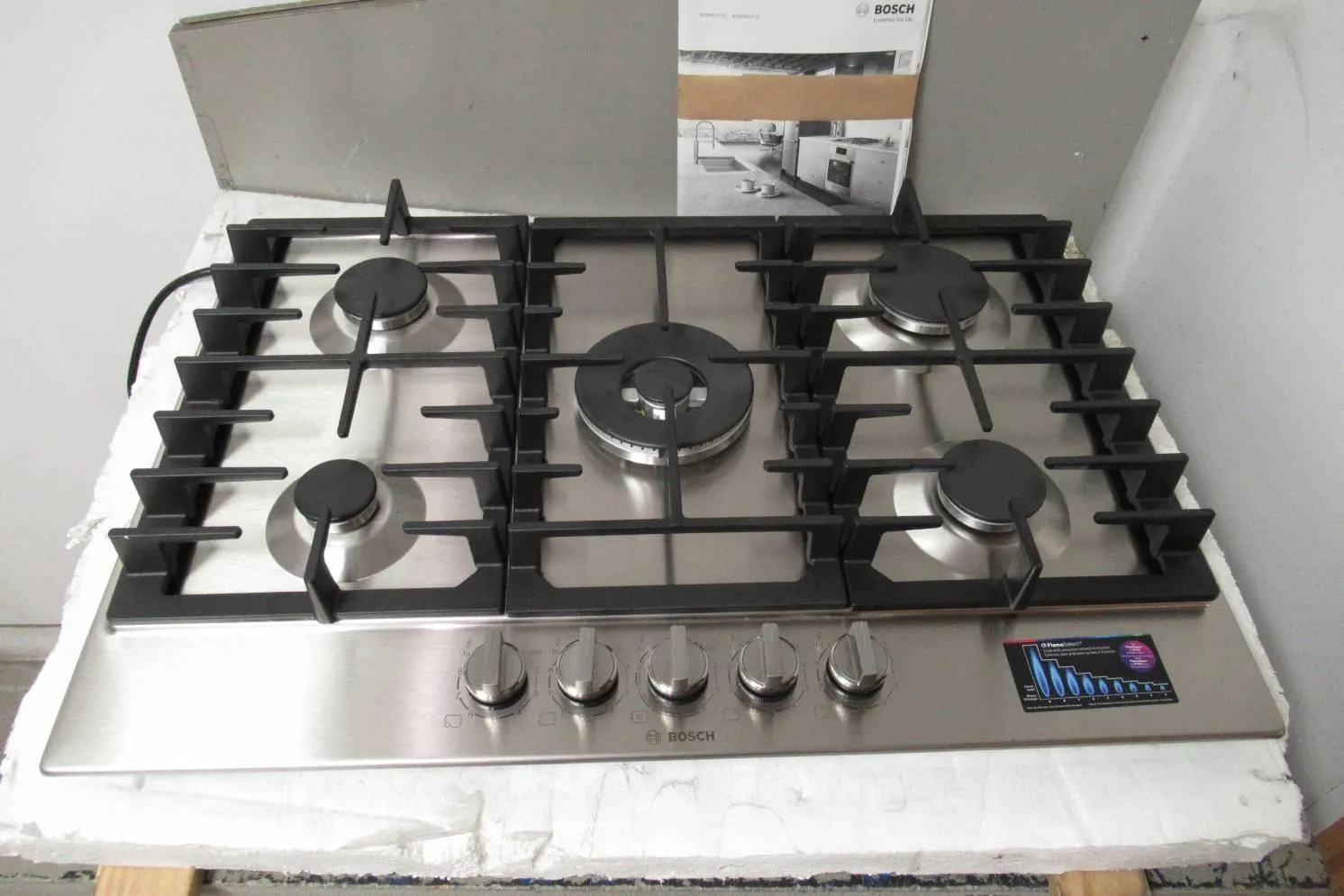

**FIRST PICTURE IS OF AN OPEN BOX UNIT TO SHOW WHAT THE UNIT LOOKS LIKE COMPLETE**

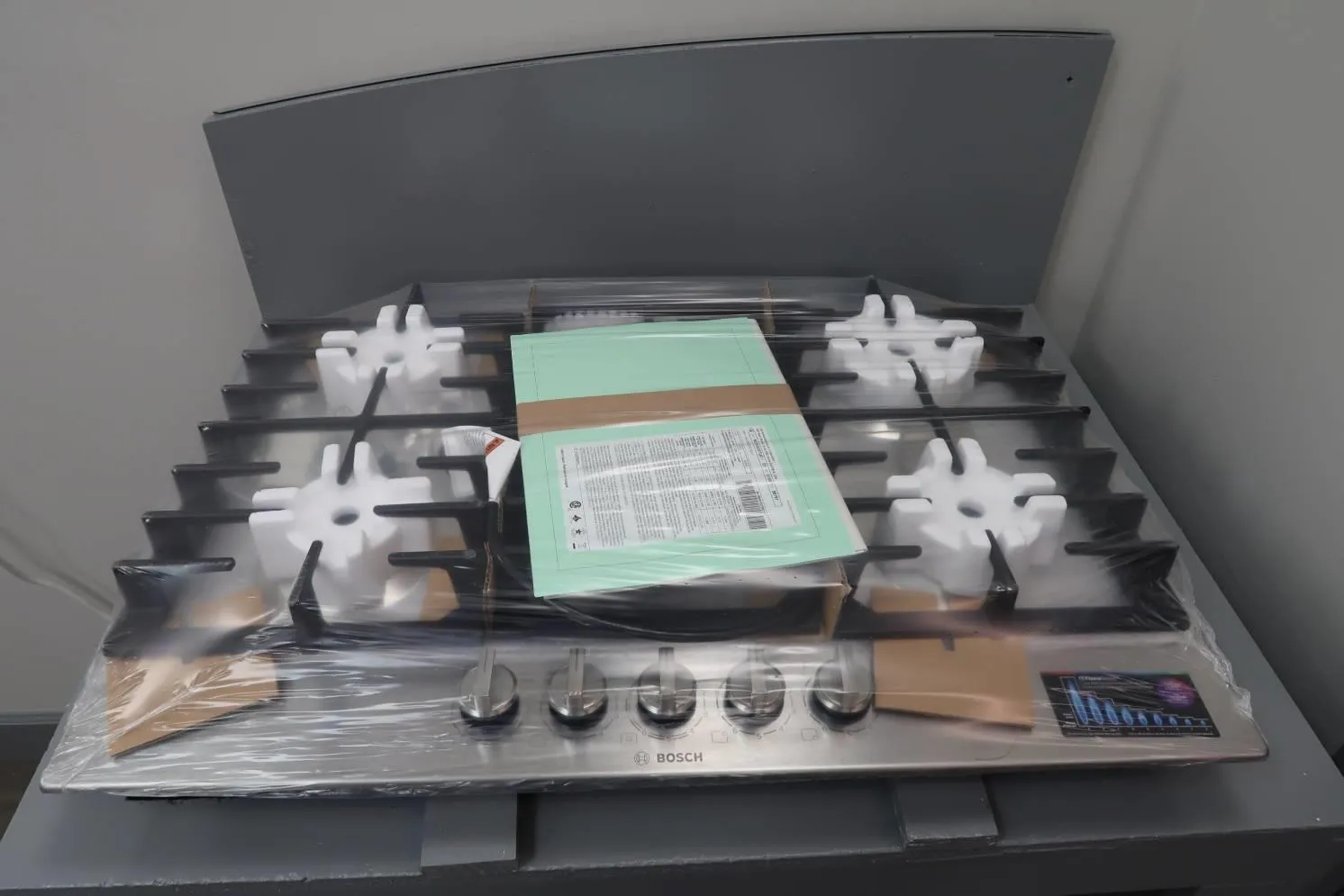

**UNIT IS IN ORGINAL PLASTIC PACKAGING**

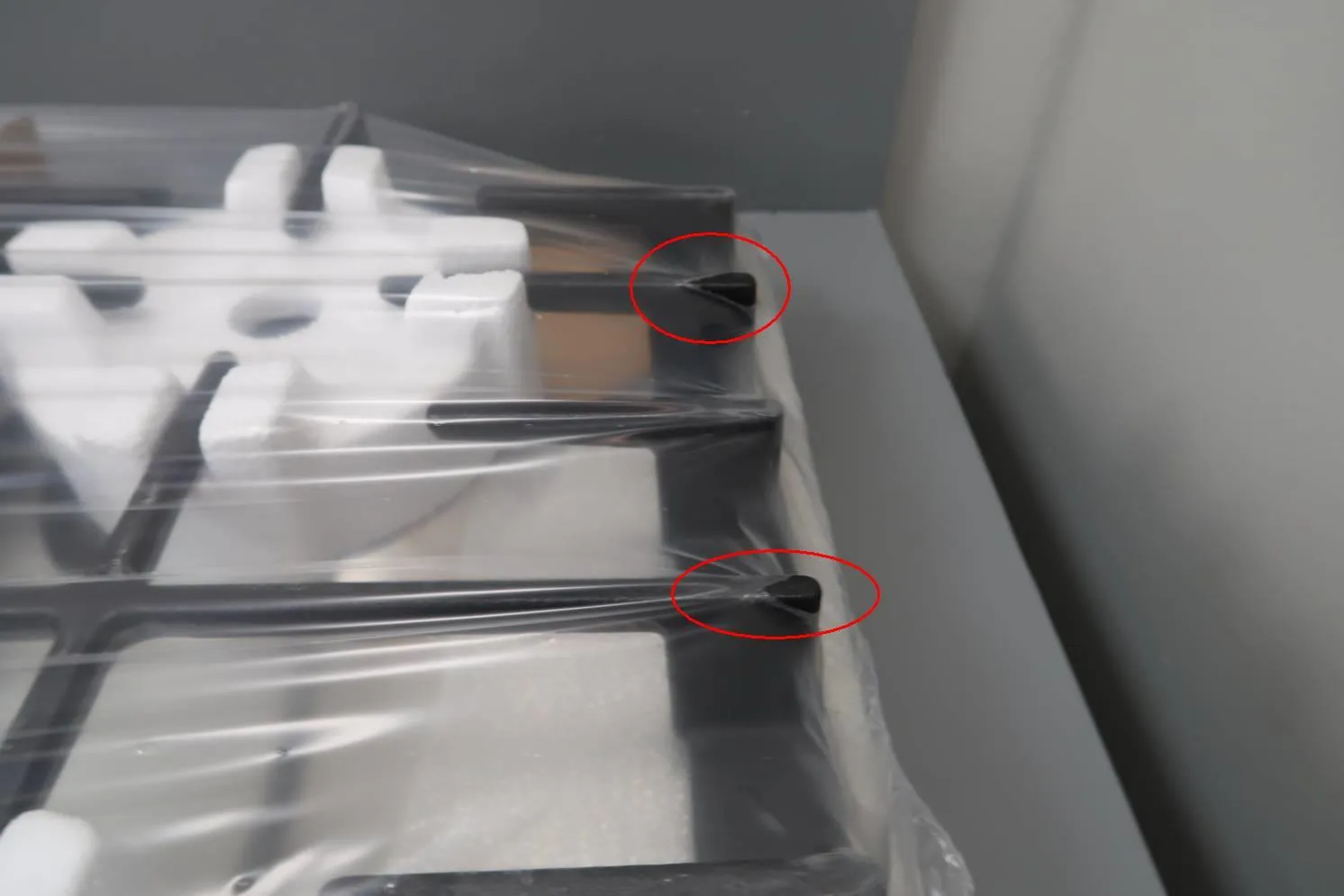

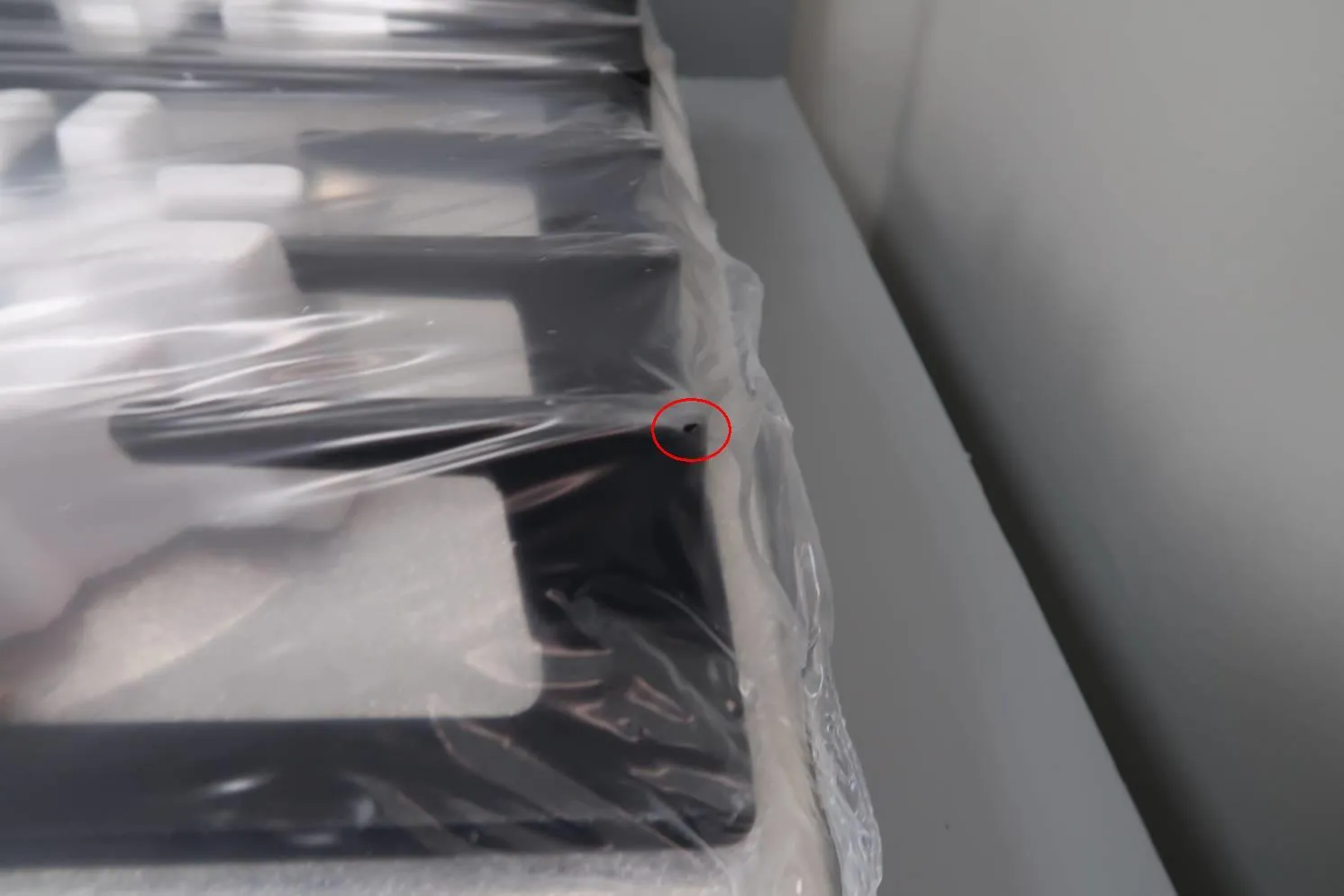

**THERE ARE SOME HOLES IN THE PLASTIC WHERE AREAS HAVE POKED THROUGH**

THIS UNIT IS A SCRATCH AND DENT OPEN BOX UNIT IN EXCELLENT COSMETIC CONDITION.
This unit comes with full functionality manufacturer warranty.
This warranty does not cover cosmetic imperfections, functionality only.
Pictures are of the actual unit.

SPECIFICATIONS:

Construction Type:

Built-in

Installation Type:

Built-in

Color of Frame:

Stainless Steel

Cooktop Surface:

Stainless Steel

Knob Color:

Stainless Steel

Number of Cooktop Burners:

Sealed Burners:

Yes

Gas Valves:

Five 9-Level Step Valves

Ignition System:

Electric; Thermocouple Safety Control

Type of Grate:

Cast Iron

Continuous Grates:

Yes

Dishwasher Safe Grates:

Yes

Type of Safety Device for Gas:

Electromagnetic For Each Burner

Total BTU load (NG / LP):

41,400 / 40,100

Power of Front Left Burner (NG / LP) OptiSim®:

3,400 / 3,400 BTU

Power of Back Left Burner (NG / LP):

6,000 / 6,000 BTU

Power of Center Burner (NG / LP) Dual-Flame:

17,000 / 15,700 BTU

Power of Back Right Burner (NG / LP):

9,000 / 9,000 BTU

Power of Front Right Burner (NG / LP):

6,000 / 6,000 BTU

Accessories Included:

LP Conversion Kit, OptiSim® Cap

Accessories Optional:

Wok Ring (HEZ298107)

Dimensions and Weight

Overall Dimensions (HxWxD):

2 23/64" x 29 1/2" x 20 1/2"

Required Cutout Size(HxWxD):

1 1/4" x 28 15/16" x 19 1/8"

Minimum Distance From Counter Front:

1 7/8"

Minimum Distance From Rear Wall:

Net Weight:

38 Lbs

Electrical Requirements

Circuit Breaker:

15 A

Volts:

120 V

Frequency:

60 Hz

Gas connection rating:

12,100 W

Location of gas connection:

Rear, Right

Plug Type:

3-prong

Power Cord Length:

40"

Fuel Type:

Natural Gas (Factory Set)

Convertible to LP(kit required):

Yes

Certifications

ADA Compliant:

Yes

CSA:

Yes

FEATURES:

FlameSelect

Allows for a precise adjustment of the flame size with nine defined power levels.

Dual Flame Power Burner

Quickly boil water or maintain a precise simmer with two heat options

Heavy-Duty Grates

Can be easily and quickly cleaned in the dishwasher instead of cleaned by hand.

OptiSim® Burner

Simmer delicate sauces and melt chocolate without scorching.

Low Profile Cooking Surface

Stainless steel cooking surface is easily accessible and quick to clean.

LP Conversion Kit

Included for Conversion from Natural Gas to Liquid Propane

Other Features

Push-to-Turn Knobs with Electronic Ignition

Up-Front Centralized Controls

Flame Failure Safety

Cooktop Design Coordinates with Bosch Ovens and Ventilation

Bosch 800 Series 30" SS FlameSelect Low Profile 5-Burner Gas Cooktop NGM8057UC
